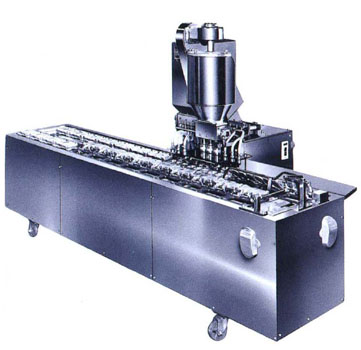

automatic baking machine
  HM-28TH2



■Feature

It is a semi-automatic machine easy to operate and hardly breakdown.
The dough and bean paste are automatically fed but oil wiping and product taking out are done manually.
Moreover, the baking die and the bean paste depositor are the one-touch detaching specifications so that thiscould produce varieties.


■Specification
Main production items
item with beam paste , bean grains , custard cream

Production capacity
1,000 items per hour

Baking speed
3~6 minutes   continous speed change by the inverter

Heat source
propane gas , or city gas

Amount of gas use
19,200Kcal/h

Amount of electric use
Main body of machine  400W, outlets  4P 20A 200V

Installed area
2,745㎜ in width×1,130㎜ in depth× 1,660㎜ in height

Size of baking die
85㎜×170㎜

Material of baking die
Brass


■Process
Oil wiping
Dough feeding
bean paste filling
Baking completion



[ baking machines based on this ]
