| Fully automatic Cookie cracker baking machine
DK-60KAF
|
|
|
|
|
|
|
■Feature |
This is suitable for mass production of cookie rice cracker.
Because baking speed and power can be freely adjusted, the baking degree and color can be done according to the request.
Original cookie rice crackers can be baked by mixing the dough.
|
■Specification |
Main production items |
Cookie cracker |
|
Production capacity |
2,000～3,000 pieces per hour (1 baking die produces 3 pieces) |
|
Baking speed |
3.5～7 seconds continous speed change /1 baking die |
|
Heat source |
Propane gas or city gas |
|
Amount of gas use |
108,000Kcal/h |
|
Amount of electric use |
Three aspects 200V Main body ：750W |
|
|
dough feeder ：200W, conveyer ：100W |
|
|
Compressor：400W |
|

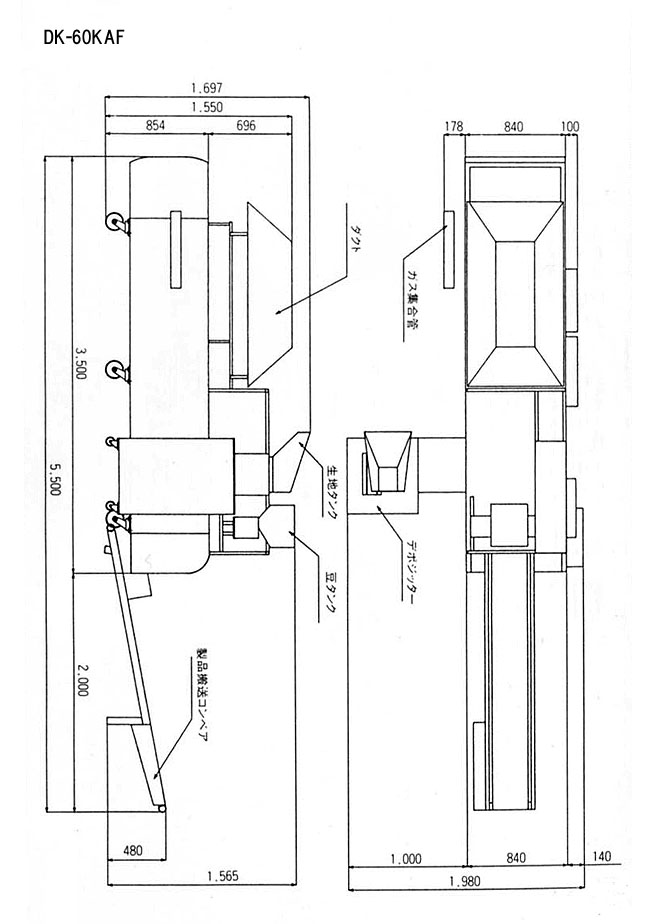

Installed area |
Main body:3,600㎜ in width×2,000㎜ in depth× 1,800㎜ in height |
|
|
conveyer : 2,000㎜ in width×500㎜ in depth× 600㎜ in height |
|
Size of baking die |
95×303㎜ 60 sets |
 |
Material of baking die |
iron , aluminum , Brass etc,. |
|
■Process |
|
|
|
|
|
|
|
|
|
Cutting the dough |
|
to the baking die |
|
Filling |
|
Taking out |
|
|
|
